There are 12 bolts on the standard Mira and Fanny loom (6 on each side) and the distance between the outside of the frame and the edge of the hole where the nut is installed should be about 4 to 4 1/4 inches. The bolt locations on a single side of each loom (Mira left, Fanny right) are shown in the picture below (Click to enlarge). On the 4 shaft Nilus and Nilus II Jack looms, 4 of the Nilus Long Bolts are used to attach the lateral cross-members to the castle.
These bolts are used to fasten the horizontal Batten Handtree and Batten Sley to the vertical Swords on each side of the loom beater. There are a total of 4 bolts. The 2 lower bolts have square nuts and are always kept tight to position the beater frame. The 2 upper bolts have wing nuts that face the weaver and are loosened to raise the Batten Handtree so the Reed can be removed and installed.
The smaller bolts are used on the Meco table loom (pictured left) and the larger are used on the Artisat, Mira, Fanny, Nilus, Nilus II, Colonial and most other Leclerc Floor looms.
| ITEM # | LABEL | DESCRIPTION | PRICE (each) |
| 88800-0282 | A | Meco Beater Bolt Set (4 x Bolts/Washers/Nuts) | $13.50 CDN $11.95 US |
| 88800-0283 | B | Floor Loom Beater Bolt Set (4 x Bolts/Washers/Nuts) | $15.75 CDN $13.95 US |
Treadle Set Mounting Bolts
These bolts are used to fasten the metal brackets of the treadle set to the lower frame beam of most Leclerc floor looms like the 4 shaft Mira, Fanny and the 4 shaft Nilus. A set of 2 bolts is provided, each with a square nut. Note that these only work for the curved set of 6 treadles with the metal mounting brackets. Different bolts are required for the wooden mounting brackets used in the 8 shaft Nilus and all Nilus II models. Contact us for pricing on the bolts for other models.
| ITEM # | DESCRIPTION | PRICE (each) |
| 88800-0284 | Treadle Set Mounting Bolts - Metal Bracket (2 x Bolts/Nuts) | $5.50 CDN $4.95 US |
| 88800-0224 | Treadle Set Mounting Bolts - Wood Bracket (2 x Bolts/Nuts) | $6.50 CDN $5.95 US |
Colonial Frame Pegs
These wooden pegs are used to hold the frame together on the original Colonial loom. They are normally tapped in place with a rubber hammer and hold the frame securely even when the loom is being beaten heavily. Note that these pegs are not used in the other versions of the Colonial like the Colonial I and the Colonial v2 which use bolts to hold the frame together.
These pegs are made from Maple Hardwood and 8 pegs are used on the Colonial loom. (Click to enlarge).
| ITEM # | DESCRIPTION | PRICE (each) |
| 88800-0245 | Colonial Frame Peg | $7.00 CDN $6.00 US |
Beater Sword Mounting Plates
These metal plates are used to attach the wooden beater swords to the loom frame on floor looms like the Fanny, Mira, Nilus, Nilus II and Colonial. They allow the beater height to be adjusted by about 1 inch to make sure the beater is positioned properly in relation to the warp threads. By loosening the pair of nuts on each side, the wooden sword can be moved up or down. The kit includes 2 of the mounting screws as well as the bolts/nuts used to fasten the plate to the wooden sword. The screws to attach the mounting plates to the loom frame are also available separately.
A set of lag screws to attach the plates to the frame are also included but in newer looms a set of bolts/nuts bolts may be required. Contact us if these are required.
Note that older Leclerc looms had beater mechanisms that did not have this adjustment plate but they can be upgraded by cutting off the end of the swords and drilling a set of holes to attach the plate and using the shorter lag screw included. See the picture shown here for measurements.
Some older Leclerc floor looms used a slightly different version of this plate. The picture located here includes measurements to determine if the plate will work with these looms.
| ITEM # | DESCRIPTION | PRICE |
| 88800-0068 | Beater Sword Mounting Plate Set | $48.00 CDN $44.00 US |
| 88800-0069 | Beater Sword Mounting Screw/Washer Set (2 Screws and 4 Washers) | $5.00 CDN $4.50 US |
Treadle Set Lock Nut
On most Leclerc floor looms like the Fanny, Mira, Nilus and Nilus II the treadle set is mounted using two brackets which attach to the frame. The metal treadle rod is attached to the bracket on one side, but just fits through a hole in the other side to allow the treadle parts to be removed. To keep the rod from coming out of the bracket, a flat metal lock nut is inserted on the outside end of the treadle rod and pushed in until it is up against the bracket. This lock nut is designed to move only one way and can not normally be removed without destroying it. To re-install the wooden treadles and spacers after taking the treadle set apart, another flat lock nut is usually required. The part numbers below are for a single Treadle Lock Nut.
The standard lock nut fits most looms including the Artisat, Minerva and Table loom Treadle Stands. A special smaller Lock Nut is used on the Compact and 4 are required as they are used to secure the Brake Treadle as well as the shaft treadles. Specify the specific loom with the order note section to ensure you get the correct size.
Note: The old lock nut can normally be removed by prying the space between the nut and the bracket using a large screwdriver or cutting one side of the nut with a pair of pliers.
| ITEM # | DESCRIPTION | PRICE (EACH) |
| 88800-0197 | Treadle Set Lock Nut | $1.75 CDN $1.50 US |
| 88800-0198 | Compact Treadle Set Lock Nut | $1.75 CDN $1.50 US |
Breast Beam Pins
These metal pins are used on most Leclerc Floor looms to attach the front and back breast beams. They come in pairs and fit most of the looms with removable breast beams like the Fanny, Mira, Nilus, Nilus II, Nilart, Colonial and Weavebird.
They also fit the brackets for the older model of the Double Warp Beam that used a standard breast beam instead of the current roller design. Normally a total of 2 pairs (4 pins) are used on each loom.
| ITEM # | DESCRIPTION | PRICE (pair) |
| 88800-0268 | Pair of Breast Beam Pins (2 Pins) | $5.95 CDN $4.95 US |
Artisat Breast Beam Screws
These screws are used to fasten the Artisat front and back Breast Beams to the frame. They come in sets of 4 screws (2 screws for the front Breast Beam and 2 screws for the back).

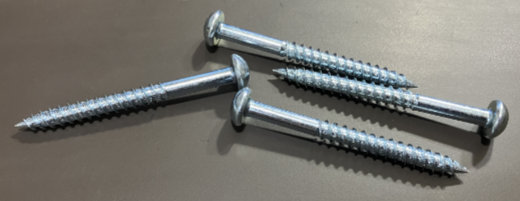

On most newer looms, Leclerc used 2 inch long screws (length of screw shaft excluding screw head) but on some older looms slightly longer 2 1/2 inch screws were used. The longer ones can be used on any Artisat model although the hole depth in the frame may have to be drilled a little deeper if 2 inch screws were originally used. The longer screws may also help in tightening up the Breast Beam if the existing hole has become worn over time.
Note: Parts may require the special square end screwdriver to remove the old and/or install the new part. Please ensure you have these tools before ordering to avoid installation problems.
| ITEM # | DESCRIPTION | PRICE (4 Screws) |
| 88800-0875 | Artisat Breast Beam Screws 2 inch (4 Screws) | $7.95 CDN $6.95 US |
| 88800-0876 | Artisat Breast Beam Screws 2 1/2 inch (4 Screws) | $7.95 CDN $6.95 US |
Floor Loom Treadle Set Parts
The parts are used to construct and attach the Treadle sets for the Fanny, Mira, Nilus (front hinge) and Nilus II (front hinge) floor looms. These parts may also be used on some older versions of the Table Loom Treadle Stands.
The Fanny, Mira, Nilus (4 Shaft Front-Hinge) looms use a treadle set made using 1 x Left Metal Bracket with an attached curved treadle rod (C), 1 x Right Metal Bracket (D), 6 x Treadles (A), 5 x Spacers (B) and 2 x Metal Washers (J). The Full Treadle Set for these looms can be ordered using Part Number 88800-0271 below. The Mounting Bolts (E) are used to attach them to the Loom Frame. This treadle set is shown at the top of the pictures
The Treadle Set for the 4 shaft Front Hinge versions of the Nilus II is constructed with 6 x Treadles (F), 4 x Spacers (B), 4 x Washers (J), 1 x Treadle Rod (G) and 3 x Mounting Brackets (H). This Treadle Set is shown at the bottom of the pictures.
| ITEM # | SHOWN AS | DESCRIPTION | LOOM | PRICE (each) |
| 88800-0258 | A | Single Wooden Treadle | Fanny, Mira and Nilus (front hinge) | $69.95 CDN $62.95 US |
| 88800-0255 | B | Wooden Treadle Spacer | Fanny, Mira, Nilus (front hinge) and Nilus II (front hinge) | $3.50 CDN $2.95 US |
| 88800-0278 | C | Left Treadle Mounting Bracket with Treadle Rod and Lock Nut | Fanny, Mira and Nilus (front hinge) | $49.95 CDN $44.95 US |
| 88800-0277 | D | Right Treadle Mounting Bracket | Fanny, Mira and Nilus (front hinge) | $34.95 CDN $31.50 US |
| 88800-0284 | E | Treadle Set Mounting Bolts - Metal Brackets (2 x Bolts/Nuts) | Fanny, Mira and 4 shaft Nilus (front hinge) | $5.50 CDN $4.95 US |
| 88800-0224 | - | Treadle Set Mounting Bolts - Wood Brackets (2 x Bolts/Nuts) | 8 shaft Nilus (front hinge) and all Nilus II (front-hinge) | $6.50 CDN $5.95 US |
| 88800-0259 | F | Single Nilus II Wooden Treadle | Nilus II (4 shaft front hinge) | $49.95 CDN $44.95 US |
| 88800-0276 | G | Nilus II Treadle Rod (with 2 Lock Nuts) | Nilus II (4 shaft front hinge) | $16.95 CDN $15.25 US |
| 88800-0279 | H | Single Nilus II Wooden Treadle Mounting Bracket with Mounting Bolt (3 needed) | Nilus II (front hinge) | $29.95 CDN $26.95 US |
| 88800-0256 | J | Metal Treadle Washer | Fanny, Mira, Nilus (front hinge) and Nilus II (front hinge) | $0.35 CDN $0.30 US |
| 88800-0271 | Full Fanny/Mira/Nilus Treadle Set | Fanny, Mira and Nilus (4 shaft) | $494.95 CDN $444.95 US |
Bergere 2nd Heddle Support
This kit adds a second set of heddle support bracket to the Leclerc Bergere Rigid Heddle loom to allow two rigid heddles to be used while weaving. The brackets are mounted in front of the existing ones and a set of screws is provided alonge with mounting instructions. The kit includes a bracket for each side and instructions are shown in the Bergere section of our Manual page.
| ITEM # | DESCRIPTION | PRICE |
| 88800-0197 | Bergere 2nd Heddle Support Bracket Set | $42.00 CDN $40.00 US |
Loom Frame Parts
We only list a small selection of the parts available for Leclerc looms on this site but we can also provide a very large number of wood and metal parts that make up the frame and operating mechanism of most loom models. These genuine Leclerc quality components include things like lamms, frame beams, treadles, warp and cloth beams, counterbalance rollers, breast beams, beater swords and sleys, folding back beam supports and much, much more. (Click on the picture to the left to expand)
Contact us at nmanners@camillavalleyfarm.com and we will try to help. Note that it often helps for us to have clear pictures of your loom to identify the specific model and version and avoid providing the incorrect product. Our Leclerc Loom Identification Page will help you determine the specific model.
MORE PARTS (page 2) Note that these pages contain only a small selection of parts available for Leclerc weaving looms.
If you require a part not shown on this or any other page on our site, please contact us and we will help you locate what you require!
 | NEED HELP? Contact us for help in answering questions about these products or for help recommending a loom matched to your weaving level and needs. See our Leclerc Loom Comparison Chart for more help in deciding which loom is right for you. |
| How to Order: Orders may be placed using our secure Online Order Form (this form should open in another window). Click Here for more information on how to place an order as well as our terms and conditions. Payment/Currency: Payment can be made using VISA or Mastercard, Cheque or Money Order in US or Canadian funds. US credit card purchases are billed directly in US funds eliminating any foreign currency conversion charges by the credit card company. Product Directories If you are looking for other items on our website, try using our product directories to quickly find what you are looking for! Our products are grouped as follows: Weaving/Spinning Product Index Books, Magazines & Videos. | Price/Shipping Quote? If you would like an exact quote for any items complete with shipping costs, please call or email us at nmanners@camillavalleyfarm.com with you location and we will provide this. Gift Certificate If you are looking for a gift for a Knitter or Weaver and can't figure out what they want, a Camilla Valley Farm Gift Certificate is an excellent way to ensure you get the perfect gift! We can also email gift certificates if you are running out of time! Latest News/Updates Keep up to date with what is new at Camilla Valley Farm by following us on Instagram! (Click on the logo below)  |
